3.4 megapixel USB3 Digital Video Camera

$950.00

Quantity

- +
  • Product Description

      Description

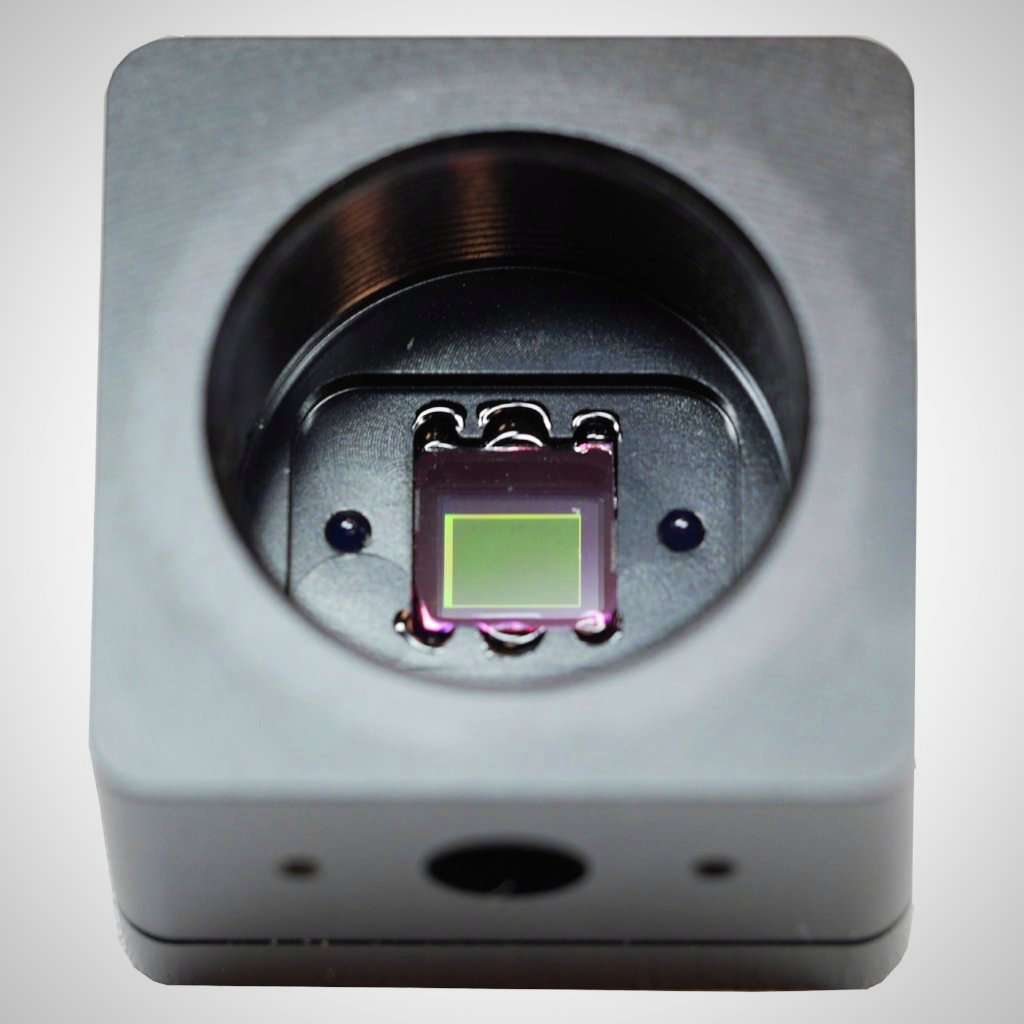

      3.4 megapixel USB3 digital video camera. A scientific quality 3.4 megapixel camera that is powered from the USB 3 port for portable imaging anywhere a laptop or tablet goes.

      • Connects to PC USB 3 port at 60 fps @1920x1080 or 24 fps @2304/1536
      • Comes with Video Toolbox Pro PC Software
      • 1/3" sensor
      • Excellent low-light sensitivity
      • Precise color reproduction
      • Excellent for use with microscopes or macro lenses



      Model: ZC3-403-c2

      Specifications

      • UVC camera compatible with Windows, Android, Linux, macOS, ChromeOS
      • Includes Video ToolBox Pro PC software
      • USB3 camera with full exposure and white balance control.
      • Exceptional low light imaging capability
      Lens Format C-mount (CS-mount optional)
      Supported OS

      Windows 7/8/10, Linux
      macOS and Android software available for purchase on the app store

      Interface USB3, USB2 (with slower performance)
      USB 3.0 Connector USB C
      Drivers Not required (UVC compliant)
      Operating Temperature Range -30°C to 70°C
      Sensor Size 1/3 inch format
      Resolution 3.4 MP (up to 2304 x 1536)
      Pixel Size 2.2 μm x2.2 μm
      Responsitivity 2 V/lux-sec (550nm)
      SNR 39 dB
      Dynamic Range 65.5 dB
      Output Format

      Uncompressed UYVY
      Compressed MJPEG format

      Frame Rate (uncompressed)

      24 fps at 2304 x 1536
      60 fps at 1920 x 1080

      Shutter Rolling
      Exposure/White Balance Separate ISP chip
      Digital Zoom Yes
      ROHS Compliant Yes
      Software

      Video ToolBox Pro
      Video ToolBox Premier available as an option



      Computer Requirements

      Works with Windows 7/8/10, Linux, Android, macOS, ChromeOS.
      USB 3 port for best performance.


      Accessories



      • CaliWedge - For ZDM and other microscopes. Includes glass target and Wedge Reader PC Software.
