NEW Dual Filter Wheel

Description

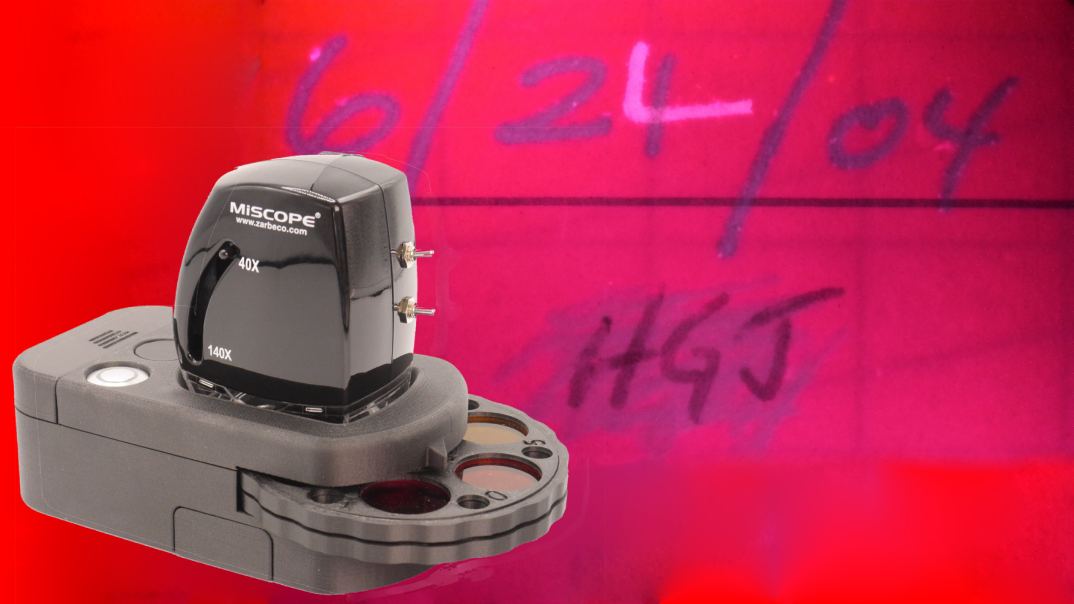

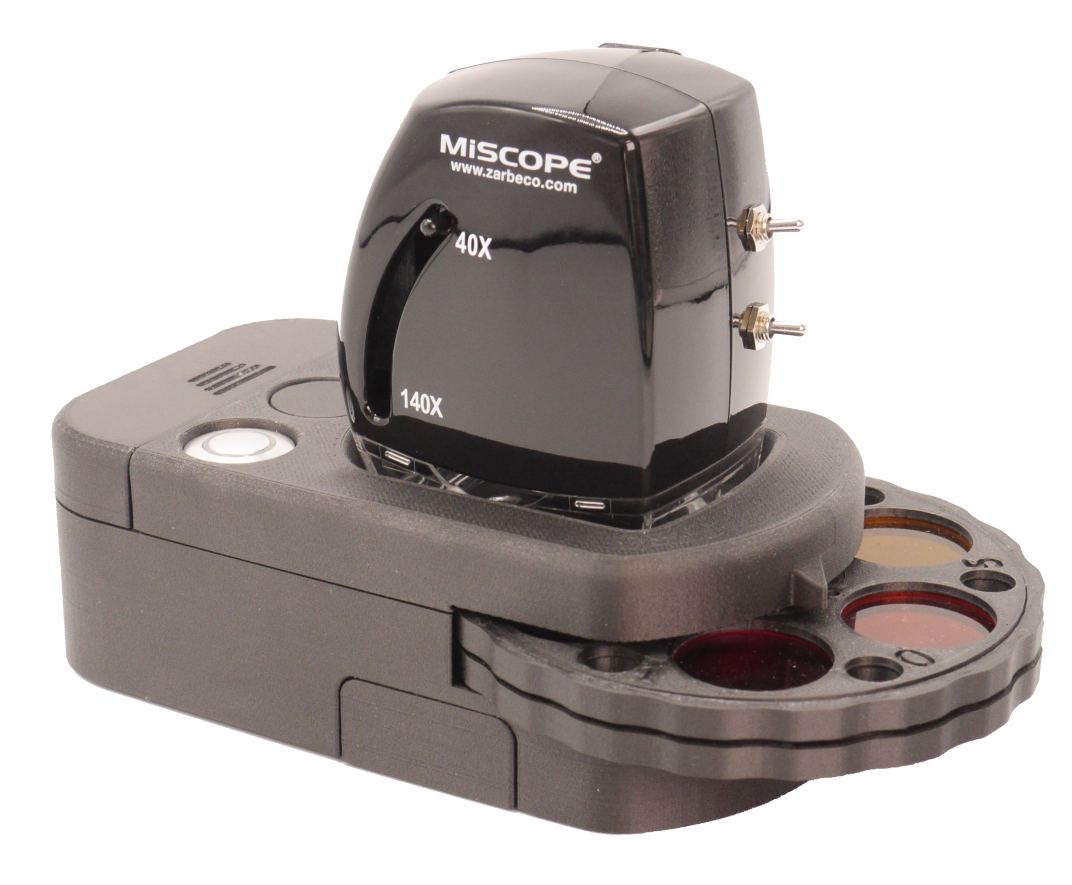

Filter Wheel for MiScope Megapixel MP3 and Megapixel MP4K

• Portable IR luminescence/fluorescence imaging
• Includes built-in blue and UV LEDs for excitation (added green LED optional)
• Includes 7 barrier cutoff filters from 490-780nm and one visible pass filter
  (added 800nm low pass filter is optional)
• One inch glass filters provide a wide field of view (no vignetting)
• Includes a stand, LED power supply and 9 volt battery
• Comes with calibration certificate for filters and LED illumination.
• Has detent stops at each filter
• For use with MiScope Megapixel MP3 and MiScope Megapixel MP4K (not included and must be purchased separately).

  Contact us for more information on compatibility with the MiScope-MP2


Warning: Infrared and Ultraviolet light is harmful.  Do not expose eyes or skin to rays. Wear UV protective eyewear and protective clothing to prevent exposure.

These units are not recommended for unsupervised use by children.

Specifications

• LED Source Wavelengths (nm): 400, 460
• Filter wavelengths (nm): 490, 550, 565, 610, 670, 700, 760, 780,
• Weight: Less than 9 oz., including battery

Optional 3 light sources include green light source

Accessories

• Articulated Arm Stand  - Adjustable articulated arm stand for Filter Wheel. Table edge attachment, or desktop base attachment options are available.
